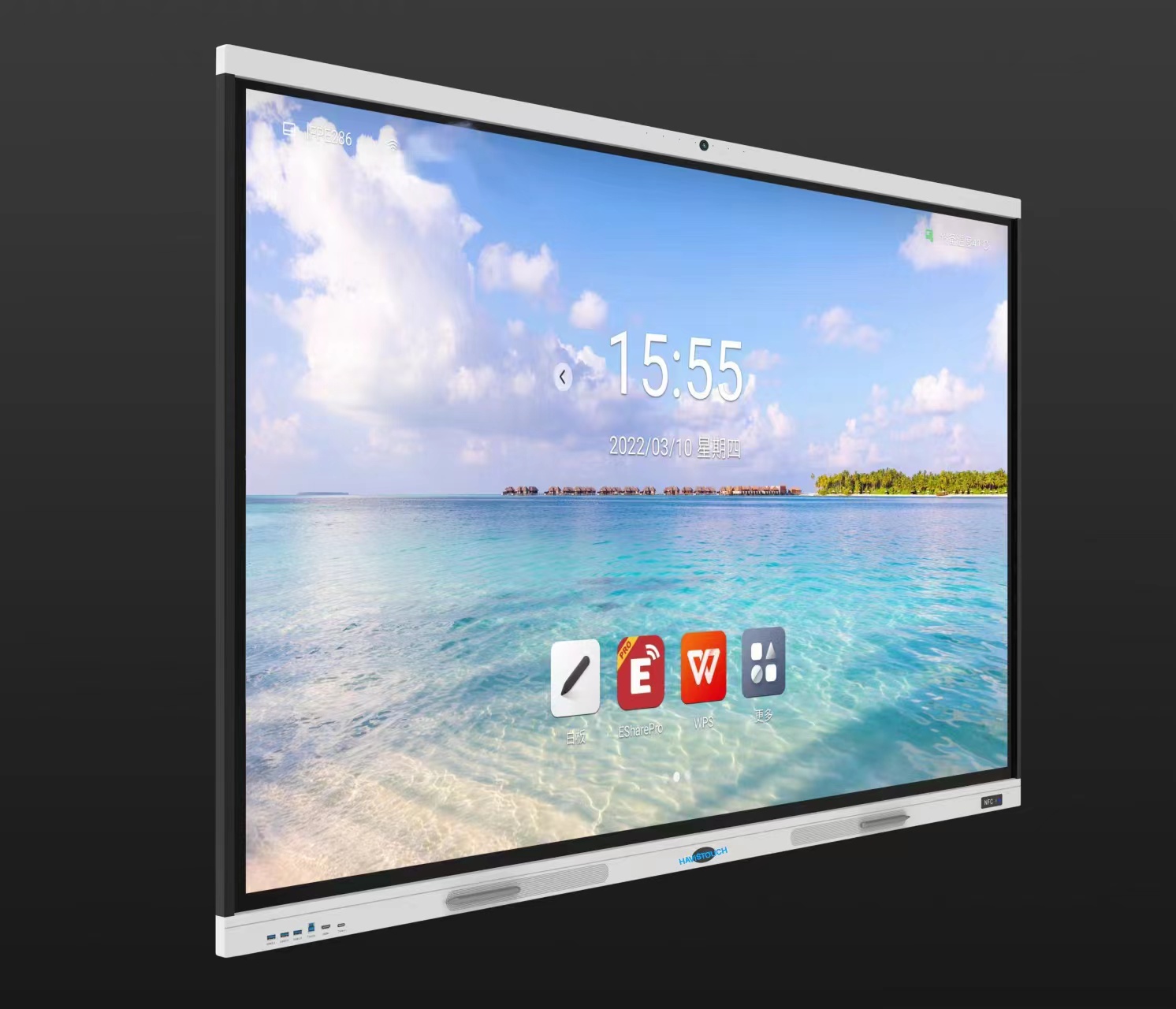

Android 12 Interactive Flat Panel built in NFC
*4+32G/8+64G/8+128G is available.*4K zero gap bonding technology, touch accuracy less then 1mm, high precision 20 points/ 40 points IR touch*Front standard USB Type-C port.*built-in camera with 12 million pixels.*Multi-software split screen function*Vote, Frozen Screen, Lock Screen etc. available*Free mirroring screenshare software, 4 or 9 devices display at the same time*55-110inch available*supporting customization according to your requirements
| Active Screen Size ("inch) | 55" | 65" | 75" | 86" | 98" |
| Display Backlight | LED | LED | LED | LED | LED |
| Display Area (Horizontal * Vertical) | 1209.6(H)×680.4(V) | 1428.48(H) ×803.52(V) | 1649.664(H) ×927.936(V) | 1895.04(H) × 1065.96(V) | 2158.8(H)×1214.4(V) |
| Resolution | 3840*2160 Pixel (4K) | 3840*2160 Pixel (4K) | 3840*2160 Pixel (4K) | 3840*2160 Pixel (4K) | 3840*2160 Pixel (4K) |
| Display Colors | 1.07G,10 bit | 1.07G,10 bit | 1.07G,10 bit | 1.07G,10 bit | 1.07G,10 bit |
| AG Glass | yes | yes | yes | yes | yes |
| LCD Brightness | 450cd/m2 | 450cd/m2 | 450cd/m2 | 450cd/m2 | 450cd/m2 |
| Contrast Ratio (Typical) | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Response Time (Typical) | 8ms | 8ms | 8ms | 8ms | 8ms |
| Viewing Angle | 178∘ | 178∘ | 178∘ | 178∘ | 178∘ |
| Life time (working hours/day) | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
| Power Consumption | <=250W | <=250W | <=300W | <=400W | <=400W |
| Working Voltage | AC 100-240V, 50/60Hz | AC 100-240V, 50/60Hz | AC 100-240V, 50/60Hz | AC 100-240V, 50/60Hz | AC 100-240V, 50/60Hz |
| Touch Surface Material | Tempered glass | Tempered glass | Tempered glass | Tempered glass | Tempered glass |
| Anti glare | yes | yes | yes | yes | yes |
| Touch Surface Hardness | >H7 | >H7 | >H7 | >H7 | >H7 |
| Touch Surface Thickness | 4mm | 4mm | 4mm | 4mm | 4mm |
| Touch Sensor | 1mm/0 gap bonding for optional | 1mm/0 gap bonding for optional | 1mm/0 gap bonding for optional | 1mm/0 gap bonding for optional | 1mm/0 gap bonding for optional |
| Touch Points | 20 Points under Android/40 Points(Windows) | 20 Points under Android/40 Points(Windows) | 20 Points under Android/40 Points(Windows) | 20 Points under Android/40 Points(Windows) | 20 Points under Android/40 Points(Windows) |
| Cursor Speed | 180Point/s | 180Point/s | 180Point/s | 180Point/s | 180Point/s |
| Touch Accuracy | ±1mm | ±1mm | ±1mm | ±1mm | ±1mm |
| Recognition distance | ≤3mm | ≤3mm | ≤3mm | ≤3mm | ≤3mm |
| Speaker Position | 2 | 2 | 2 | 2 | 2 |
| Speaker Max.Power Output | 16W*2 | 16W*2 | 16W*2 | 16W*2 | 16W*2 |
| Subwoofer | Yes | Yes | Yes | Yes | Yes |
| Outline Dimension (without wall mount bracket thickness) | 1257*755*840(mm) | 1486*924*102 (mm) | 1713*1054*105 (mm) | 1934.8*1149.1*89.6(mm) | 2218.4*1306.7*93.2(mm) |
| Net Weight | 32kg | 37kg | 56,5kg | 70kg | 110kg |
| CPU | 8 core A55, 1.2GHz | 8 core A55, 1.2GHz | 8 core A55, 1.2GHz | 8 core A55, 1.2GHz | 8 core A55, 1.2GHz |
| GPU | Quad-core Mail G52 600MHz | Quad-core Mail G52 600MHz | Quad-core Mail G52 600MHz | Quad-core Mail G52 600MHz | Quad-core Mail G52 600MHz |
| RAM | 4G/8G | 4G/8G | 4G/8G | 4G/8G | 4G/8G |
| ROM | 32G/64G/128G EMMC | 32G/64G/128G EMMC | 32G/64G/128G EMMC | 32G/64G/128G EMMC | 32G/64G/128G EMMC |
| Android Version | 12 | 12 | 12 | 12 | 12 |
| Chrome,Google playstore is available | yes | yes | yes | yes | yes |
| Built-in WIFI | 2.4G/5G wireless network, wired network， Bluetooth | 2.4G/5G wireless network, wired network， Bluetooth | 2.4G/5G wireless network, wired network， Bluetooth | 2.4G/5G wireless network, wired network， Bluetooth | 2.4G/5G wireless network, wired network， Bluetooth |
| Stylus | 2 pens | 2 pens | 2 pens | 2 pens | 2 pens |
| Wall mount | yes | yes | yes | yes | yes |
| Front interfaces | USB TOUCH*1 HDMI 2.0 *1 USB 2.0*1 USB 3.0*2 Type-C*1 | USB TOUCH*1 HDMI 2.0 *1 USB 2.0*1 USB 3.0*2 Type-C*1 | USB TOUCH*1 HDMI 2.0 *1 USB 2.0*1 USB 3.0*2 Type-C*1 | USB TOUCH*1 HDMI 2.0 *1 USB 2.0*1 USB 3.0*2 Type-C*1 | USB TOUCH*1 HDMI 2.0 *1 USB 2.0*1 USB 3.0*2 Type-C*1 |
| Rear interfaces | USB2.0*1 USB3.0*1 USB Touch*1 HDMI in*2 VGA Audio in*1 VGA*1 TF Card*1 RJ45 in*1 Earphone*1 RS232*1 Coax*1 | USB2.0*1 USB3.0*1 USB Touch*1 HDMI in*2 VGA Audio in*1 VGA*1 TF Card*1 RJ45 in*1 Earphone*1 RS232*1 Coax*1 | USB2.0*1 USB3.0*1 USB Touch*1 HDMI in*2 VGA Audio in*1 VGA*1 TF Card*1 RJ45 in*1 Earphone*1 RS232*1 Coax*1 | USB2.0*1 USB3.0*1 USB Touch*1 HDMI in*2 VGA Audio in*1 VGA*1 TF Card*1 RJ45 in*1 Earphone*1 RS232*1 Coax*1 | USB2.0*1 USB3.0*1 USB Touch*1 HDMI in*2 VGA Audio in*1 VGA*1 TF Card*1 RJ45 in*1 Earphone*1 RS232*1 Coax*1 |
| Front panel buttons | 1 button | 1 button | 1 button | 1 button | 1 button |
| Microphone for optional | 6/12mic | 6/12mic | 6/12mic | 6/12mic | 6/12mic |
| Camera for optional | 8mega pixels | 8mega pixels | 8mega pixels | 8mega pixels | 8mega pixels |
| Warranty | 5years | 5years | 5years | 5years | 5years |
| Panel | Grade A | Grade A | Grade A | Grade A | Grade A |
