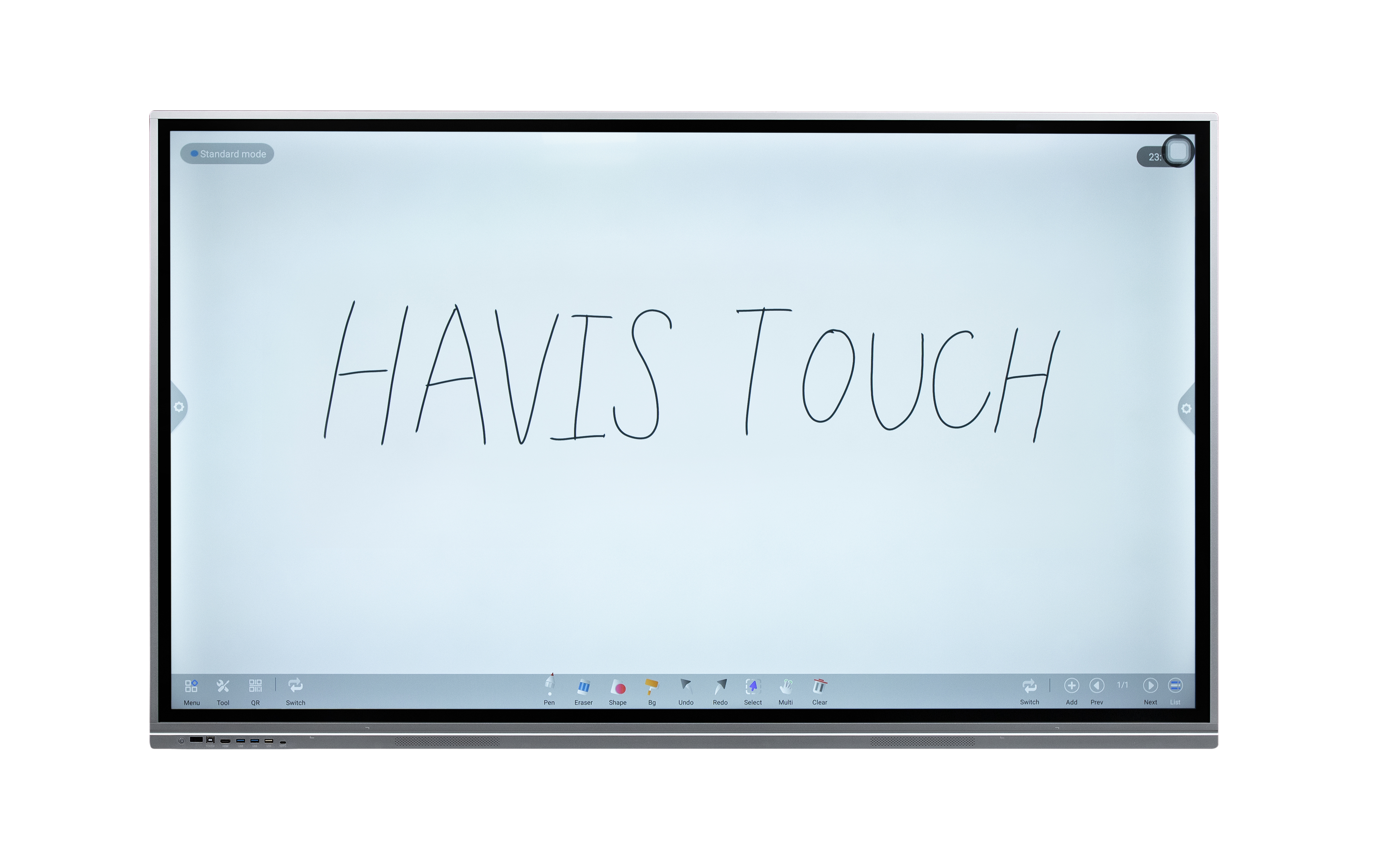

Android 13 Interactive Flat Panel
Android 13 interactive intelligent panel are designed to fit the needs of teachers and students seamlessly.
By listening to educators and gathering customer feedback, HAVISTOUCH creates solutions that remove the challenging barriers facing teachers today.
The result; intuitive user-friendly software to work in harmony with the way you educate.
* 0 gap bonding and IR Touch for optional
* Super Narrow 12mm Slim Bezel
* Front Type C built in
* 4/9 Screens Wireless Mirroring Soft built in
* Anti-Glare 7 mohs
* Split Screen built it
* Vote, Timer, Welcome Page, Spotlight, Freeze, recordscreen ect including
* Intelligent Hand Writing recognition
* Dual stylus pen
* QR code/Email Sharing
* Importing PIC/PDF
* Any customization is available
By listening to educators and gathering customer feedback, HAVISTOUCH creates solutions that remove the challenging barriers facing teachers today.
The result; intuitive user-friendly software to work in harmony with the way you educate.
* 0 gap bonding and IR Touch for optional
* Super Narrow 12mm Slim Bezel
* Front Type C built in
* 4/9 Screens Wireless Mirroring Soft built in
* Anti-Glare 7 mohs
* Split Screen built it
* Vote, Timer, Welcome Page, Spotlight, Freeze, recordscreen ect including
* Intelligent Hand Writing recognition
* Dual stylus pen
* QR code/Email Sharing
* Importing PIC/PDF
* Any customization is available
Android 13 982 chips 4G+32G Interactive Flat Panel Spec Sheet
| Active Screen Size ("inch) | 55" | 65" | 75" | 86" |
| Model | HWST55-IFP01 | HWST65-IFP01 | HWST75-IFP01 | HWST86-IFP01 |
| Display Area (Horizontal * Vertical) | 1209.6(H)×680.4(V) | 1428.48(H) ×803.52(V) | 1649.664(H) ×927.936(V) | 1895.04(H) × 1065.96(V) |
| Resolution | 3840*2160 Pixel (2K/4K) | 3840*2160 Pixel (4K) | 3840*2160 Pixel (4K) | 3840*2160 Pixel (4K) |
| Display Colors | 1.07G,10 bit | 1.07G,10 bit | 1.07G,10 bit | 1.07G,10 bit |
| AG Glass | yes | yes | yes | yes |
| LCD Brightness | 450cd/m2 | 450cd/m2 | 450cd/m2 | 450cd/m2 |
| Contrast Ratio (Typical) | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Response Time (Typical) | 8ms | 8ms | 8ms | 8ms |
| Viewing Angle | 178∘ | 178∘ | 178∘ | 178∘ |
| Life time (working hours/day) | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
| Power Consumption | <=250W | <=250W | <=300W | <=400W |
| Working Voltage | AC 100-240V, 50/60Hz | AC 100-240V, 50/60Hz | AC 100-240V, 50/60Hz | AC 100-240V, 50/60Hz |
| Touch Surface Material | Tempered glass | Tempered glass | Tempered glass | Tempered glass |
| Super Narrow Bezel | 12mm | 12mm | 12mm | 12mm |
| Anti glare | yes | yes | yes | yes |
| Touch Surface Hardness | >H7 | >H7 | >H7 | >H7 |
| Touch Surface Thickness | 4mm | 4mm | 4mm | 4mm |
| Touch Sensor | 0 gap bonding /Infrared Touch | 0 gap bonding/ Infrared Touch | 0 gap bonding /Infrared Touch | 0 gap bonding /Infrared Touch |
| Touch Points | 20 Points under Android/40 Points(Windows) | 20 Points under Android/40 Points(Windows) | 20 Points under Android/40 Points(Windows) | 20 Points under Android/40 Points(Windows) |
| Cursor Speed | 180Point/s | 180Point/s | 180Point/s | 180Point/s |
| Positioning Accuracy | ±2mm | ±2mm | ±2mm | ±2mm |
| Recognition distance | ≤1mm | ≤1mm | ≤1mm | ≤1mm |
| Speaker Position | 2 | 2 | 2 | 2 |
| Speaker Max.Power Output | 15W*2 | 15W*2 | 15W*2 | 15W*2 |
| Subwoofer | Yes | Yes | Yes | Yes |
| Lightning sensor/Brightness auto adjusting | optional | optional | optional | optional |
| Outline Dimension (without wall mount bracket thickness) | 1257*755*840(mm) | 1486*924*102 (mm) | 1713*1054*105 (mm) | 1959*1193*102 (mm) |
| Net Weight | 32kg | 37kg | 56,5kg | 70kg |
| CPU | Quad-core ARM Cortex-A55 | Quad-core ARM Cortex-A55 | Quad-core ARM Cortex-A55 | Quad-core ARM Cortex-A55 |
| GPU | Mali-G52 MP2(2EE) | Mali-G52 MP2(2EE) | Mali-G52 MP2(2EE) | Mali-G52 MP2(2EE) |
| RAM | 4G/6G/8G for optional | 4G/6G/8G for optional | 4G/6G/8G for optional | 4G/6G/8G for optional |
| ROM | 32G/64G/128G for optional | 32G/64G/128G for optional | 32G/64G/128G for optional | 32G/64G/128G for optional |
| Android Version | 13 | 13 | 13 | 13 |
| Chrome,Google playstore is available | yes | yes | yes | yes |
| Built-in WIFI | 2.5G/5G | 2.5G/5G | 2.5G/5G | 2.5G/5G |
| Stylus | 2 pens | 2 pens | 2 pens | 2 pens |
| Wall mount | yes | yes | yes | yes |

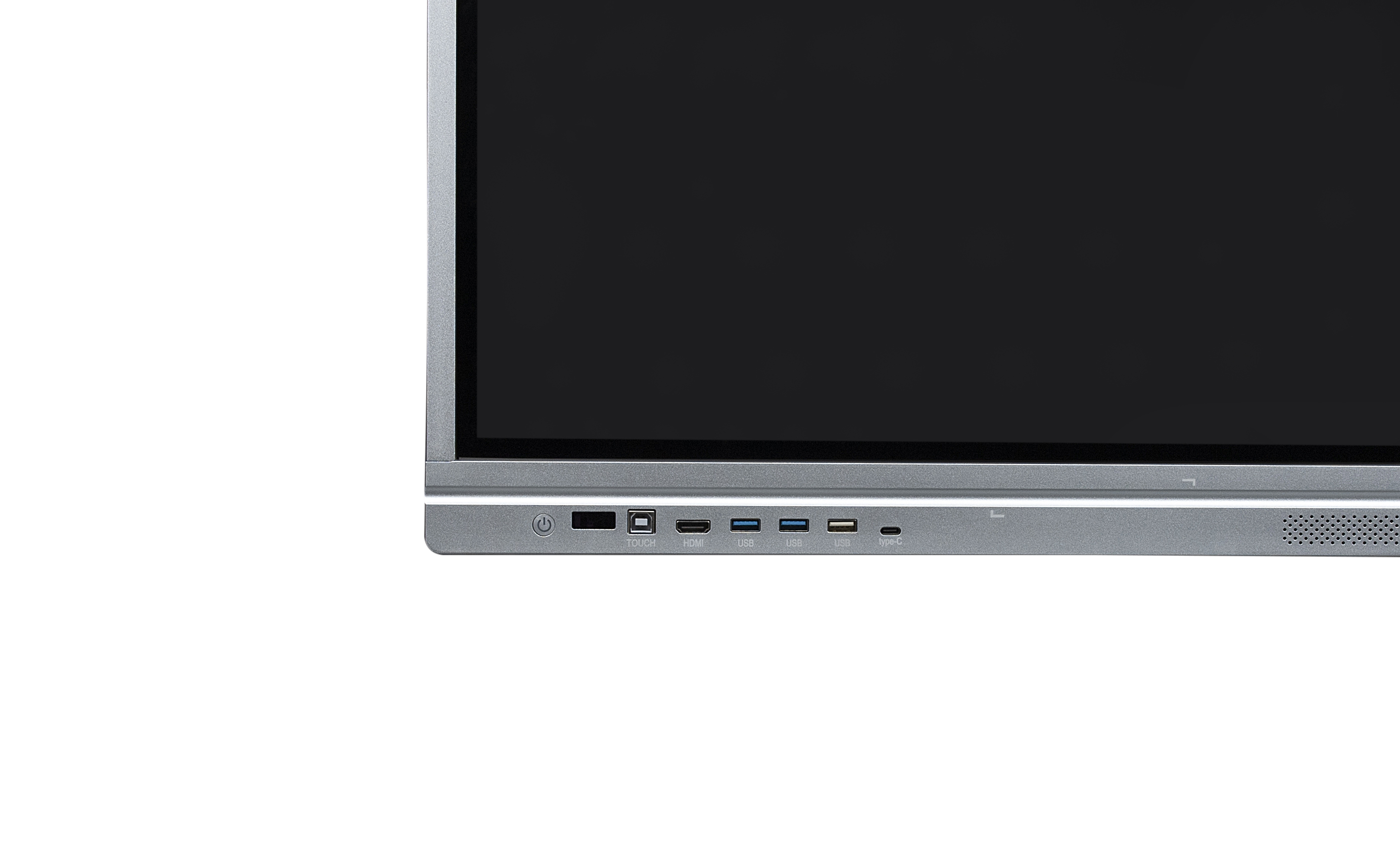

| Front interfaces | USB TOUCH*1 HDMI 2.0 *1 USB 2.0*2 USB 3.0*1 TYpe C(optional) | USB TOUCH*1 HDMI 2.0 *1 USB 2.0*2 USB 3.0*1 TYpe C(optional) | USB TOUCH*1 HDMI 2.0 *1 USB 2.0*2 USB 3.0*1 TYpe C(optional) | USB TOUCH*1 HDMI 2.0 *1 USB 2.0*2 USB 3.0*1 TYpe C(optional) |
| Rear interfaces | HDMI OUT*1 (optional) Type C(optional) DP in(optional) HDMI IN*2 Touch USB-B*1 RJ45 IN*1 RJ45 out*1( for optional , default without it) YPBPR IN*1 Earphone *1 AV IN *1 AV OUT*1 MIC*1 （optional,default without) VGA IN *1 (optional) VGA AUDIO IN*1 RS232 Uart*1 Spdif OUT*1 USB 2.0 *1 USB 3.0*1 TF*1 （optional,default without) | HDMI OUT*1 (optional) Type C(optional) DP in(optional) HDMI IN*2 Touch USB-B*1 RJ45 IN*1 RJ45 out*1( for optional , default without it) YPBPR IN*1 Earphone *1 AV IN *1 AV OUT*1 MIC*1 （optional,default without) VGA IN *1 (optional) VGA AUDIO IN*1 RS232 Uart*1 Spdif OUT*1 USB 2.0 *1 USB 3.0*1 TF*1 （optional,default without) | HDMI OUT*1 (optional) Type C(optional) DP in(optional) HDMI IN*2 Touch USB-B*1 RJ45 IN*1 RJ45 out*1( for optional , default without it) YPBPR IN*1 Earphone *1 AV IN *1 AV OUT*1 MIC*1 （optional,default without) VGA IN *1 (optional) VGA AUDIO IN*1 RS232 Uart*1 Spdif OUT*1 USB 2.0 *1 USB 3.0*1 TF*1 （optional,default without) | HDMI OUT*1 (optional) Type C(optional) DP in(optional) HDMI IN*2 Touch USB-B*1 RJ45 IN*1 RJ45 out*1( for optional , default without it) YPBPR IN*1 Earphone *1 AV IN *1 AV OUT*1 MIC*1 （optional,default without) VGA IN *1 (optional) VGA AUDIO IN*1 RS232 Uart*1 Spdif OUT*1 USB 2.0 *1 USB 3.0*1 TF*1 （optional,default without) |
| Front panel buttons | 1 button | 1 button | 1 button | 1 button |
| Microphone for optional | 6/12mic | 6/12mic | 6/12mic | 6/12mic |
| Camera for optional | 8/12mega pixels | 8/12mega pixels | 8/12mega pixels | 8/12mega pixels |
| Warranty | 3years | 3years | 3years | 3years |
| Panel | Grade A | Grade A | Grade A | Grade A |
