4000nits High Brightness Window Totem
*Industrial aluminum
*Outdoor powder coating
Wide operating temperature range*Resistant to 105C*Intelligent temperature control
*Ultra-quiet
*Versatile in both landscape and portrait orientation
*VESA mounting holes
*Export packaging (single unit)
*360-degree protection
Specifications of high brightness window display 32-86 inches
Model | HWST320-D25-PD | HWST430-D25-PD | HWST490-D25-PD | HWST550-D25-PD | HWST650-D25-PD | HWST750-D25-PD | HWST860-D25-PD | ||
Panel | Size | 32” | 43” | 49” | 55” | 65” | 75” | 86” | |
Panel Technology | IPS,RGB | IPS,RGB | IPS,RGB | IPS,RGB | IPS,M+(RGB) | IPS,M+(RGB) | IPS,M+(RGB) | ||
Display Scale | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | ||
Resolution | 1920*1080（2K FHD) | 1920*1080（2K FHD) | 1920*1080（2K FHD) | 3840*2160 (4K UHD) | 3840*2160 (4K UHD) | 3840*2160 (4K UHD) | 3840*2160 (4K UHD) | ||
Brightness | 1000-5000nits | 1000-5000nits | 1000-5000nits | 1000-5000nits | 1000-5000nits | 1000-5000nits | 1000-5000nits | ||
Ratio | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 | ||
View angle | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | ||
Surface treatment | Haze 3% | Haze 3% | Haze 3% | Haze 3% | Haze 3% | Haze 3% | Haze 3% | ||
Lifetime | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs | ||
Working hours | 7*24Hrs | 7*24Hrs | 7*24Hrs | 7*24Hrs | 7*24Hrs | 7*24Hrs | 7*24Hrs | ||
Display Mode | Support horizontal and vertical screen | Support horizontal and vertical screen | Support horizontal and vertical screen | Support horizontal and vertical screen | Support horizontal and vertical screen | Support horizontal and vertical screen | Support horizontal and vertical screen | ||
Mainboard | spec | Customer-supplied (display motherboard/Android motherboard/X86 motherboard) | |||||||
Port | （HDMI/USB/RJ45/WIFI etc) | ||||||||
Appearance | Color | Black | Black | Black | Black | Black | Black | Black | |
Border size | 18mm | 18mm | 18mm | 18mm | 18mm | 18mm | 18mm | ||

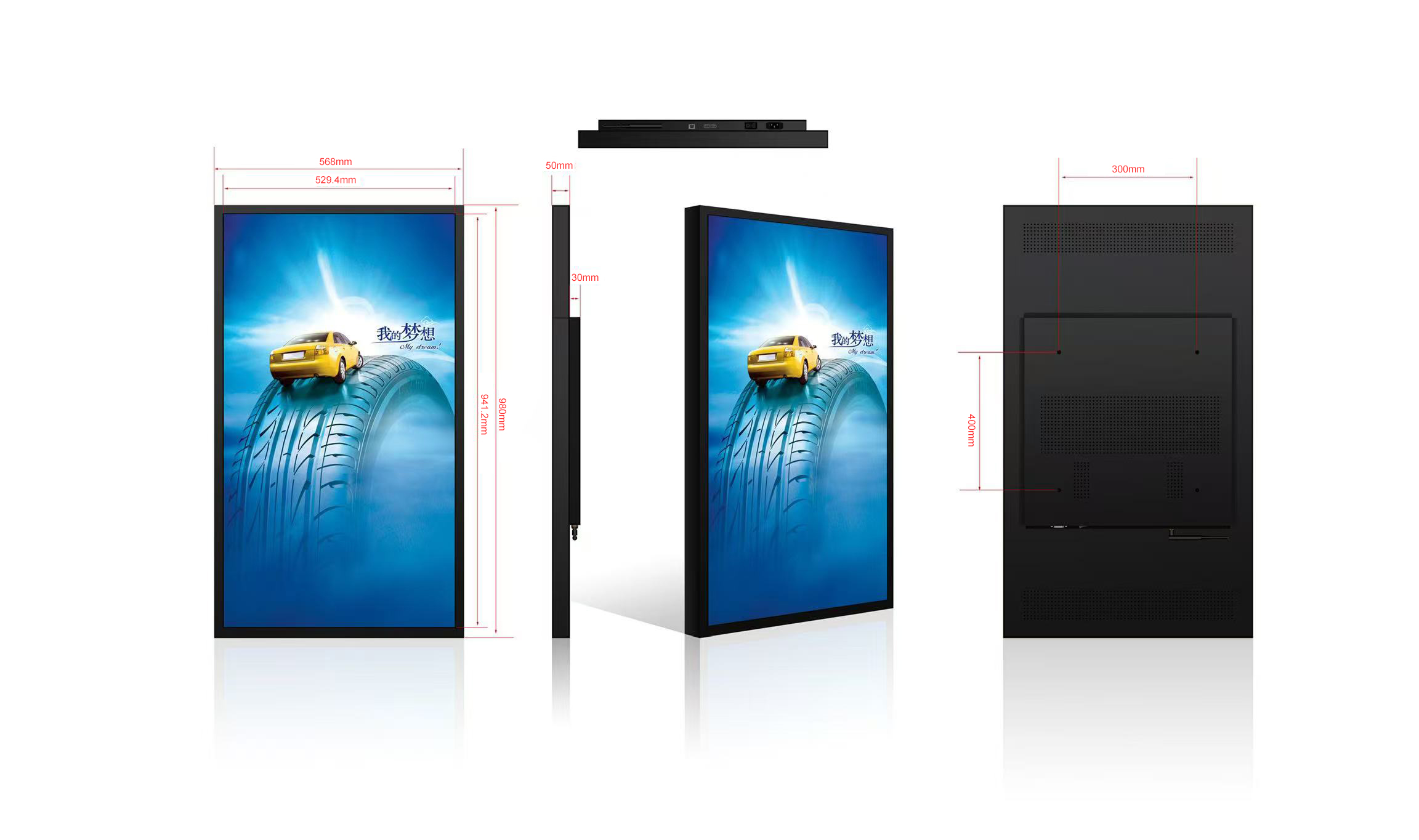

Dimensions | 739*433*80mm | 980*568*80mm | 1114*644*85mm | 1250*721*80mm | 1469*844*80mm | 1690*968*85mm | 1935*1106*85mm | ||
Net weight | 15kg | 25kg | 29kg | 35kg | 45kg | 48kg | 68kg | ||
Packing size | 845*540*210mm | 1100*690*210mm | 1220*750*210mm | 1370*840*210mm | 1590*964*210mm | 1800*1100*240mm | 2100*1300*240 | ||
Gross weight | 18kg | 28kg | 33kg | 38kg | 48kg | 53kg | 75kg | ||
Installation Dimensions | VESA400*300mm | VESA400*300mm | VESA400*400mm | VESA400*400mm | VESA400*400mm | VESA600*400mm | VESA600*400mm | ||
Work Environment | Operating temperature | 0--50 Degree | 0--50 Degree | 0--50 Degree | 0--50 Degree | 0--50 Degree | 0--50 Degree | 0--50 Degree | |
Operating humidity | 10%--85% | 10%--85% | 10%--85% | 10%--85% | 10%--85% | 10%--85% | 10%--85% | ||
power supply | Input voltage | 110-240V, 50/60Hz | 110-240V, 50/60Hz | 110-240V, 50/60Hz | 110-240V, 50/60Hz | 180-264V, 50/60Hz | |||
Maximum Power | 210W | 210W | 210W | 320W | 480W | ||||
